Flush privacy vision panels

PRIVACY VISION PANELS

INTAVISTA

Hygeno’s proprietary privacy vision panel system, the IntaVista has been meticulously engineered using select components to provide smooth, trouble-free operation in the toughest of environments. The IntaVista is known for outstanding reliability, build quality and flexibility of specification.

IntaVista privacy panels are available in two styles

INTAVISTA FLUSH FIT

The IntaVista Flush Fit is manufactured to match the thickness of the door, in turn leaving the outer panes flush with both door faces. This ledge and crevice free finish is also water-tight, rendering it resistant to the harshest of cleaning regimes.

INTAVISTA BEAD FIT

The ubiquitous Bead Fit is an 18.5mm privacy vision panel designed to be fitted into a door aperture with either timber or metal beading.

SPECIFICATION

INTAVISTA PRIVACY VISION PANELS:

- Fitting style: Flush Fit / Bead Fit

- Colour finish*: White Frost / Blackout

- Glass: 6 - 19mm toughened (to BS EN 12150)

- Acoustics: (min.) 31dB attenuation

- Fire: Non Rated / FD30 / FD60 (BS/EN cert.)

- Laser: Patented Laserbloc laser shielding

- X-ray: Code 3 - 8 (1.32 - 3.55mm) lead glass

- Operation: Single / Double sided handles

- Handle style: Lever / Thumb turn / Key turn

- Handle alloy: 316-grade SS / Antimicrobial SS

*Alternative colours available on request

Please enquire for specification advice.

Fire rated privacy vision panels.jpg

FIRE RATED PRIVACY PANELS

FIRE RATED INTAVISTA PANELS

The IntaVista Flush Fit is the world’s only fire rated, flush glazed privacy vision panel.

Our long term commitment to fire testing has resulted in a detailed, in-depth understanding of glass behaviour at extreme temperatures. This enables all IntaVista privacy panels to uniquely offer any combination of 30/60 minute fire protection, X-ray shielding and universal laser protection (featuring our LASERBLOC system) all within the same unit.

For a copy of our fire test certification, please don’t hesitate to get in touch.

Laser vision panels

Flush glazed vision panels.jpg

FLUSH GLAZED VISION PANELS

FLUSHVIEW

Flushview glazing panels are self contained, factory sealed vision panel cassettes that are manufactured to match the thickness of a customer’s door. The resulting flush finish between door surface and glass is crevice-free, water-tight, and very easy to clean.

Should the glass need replacing, the panel is also removable without incurring damage to the door.

Flushview panels are available with 30 or 60 minute fire certification, laser and X-ray shielding.

Hospital door vision panels.jpg

SPECIFICATION

FLUSHVIEW VISION PANELS

- Border colour: Black / White*

- Glass: 6 - 19mm toughened (to BS EN 12150)

- Acoustics: (min.) 31dB attenuation

- Fire: Non Rated / FD30 / FD60 (BS/EN cert.)

- Laser: Polymer filter

- X-ray: Code 3 - 8 (1.32 - 3.55mm) lead glass

- Privacy: Sandblasting with/ without spyhole

Please enquire for specification advice.

Fire rated flush vision panels.jpg

FIRE RATED FLUSH GLAZED PANELS

FIRE RATED FLUSHVIEW

Hygeno’s Flushview panels carry the same high standard of fire certification as the IntaVista panels. Once installed, the fire rated Flushview panels appear identical to non-fire rated units. They do not require any surface fixed steel frame or visible fixings, yet often outperform the test door thanks to Hygeno’s patented system of interlocking the fire glass to the core of the door.

The triple glazed design also serves to protect the inner fire glass layer from impact or damage, and all intumescent materials are protected from cleaning chemicals or wear and tear.

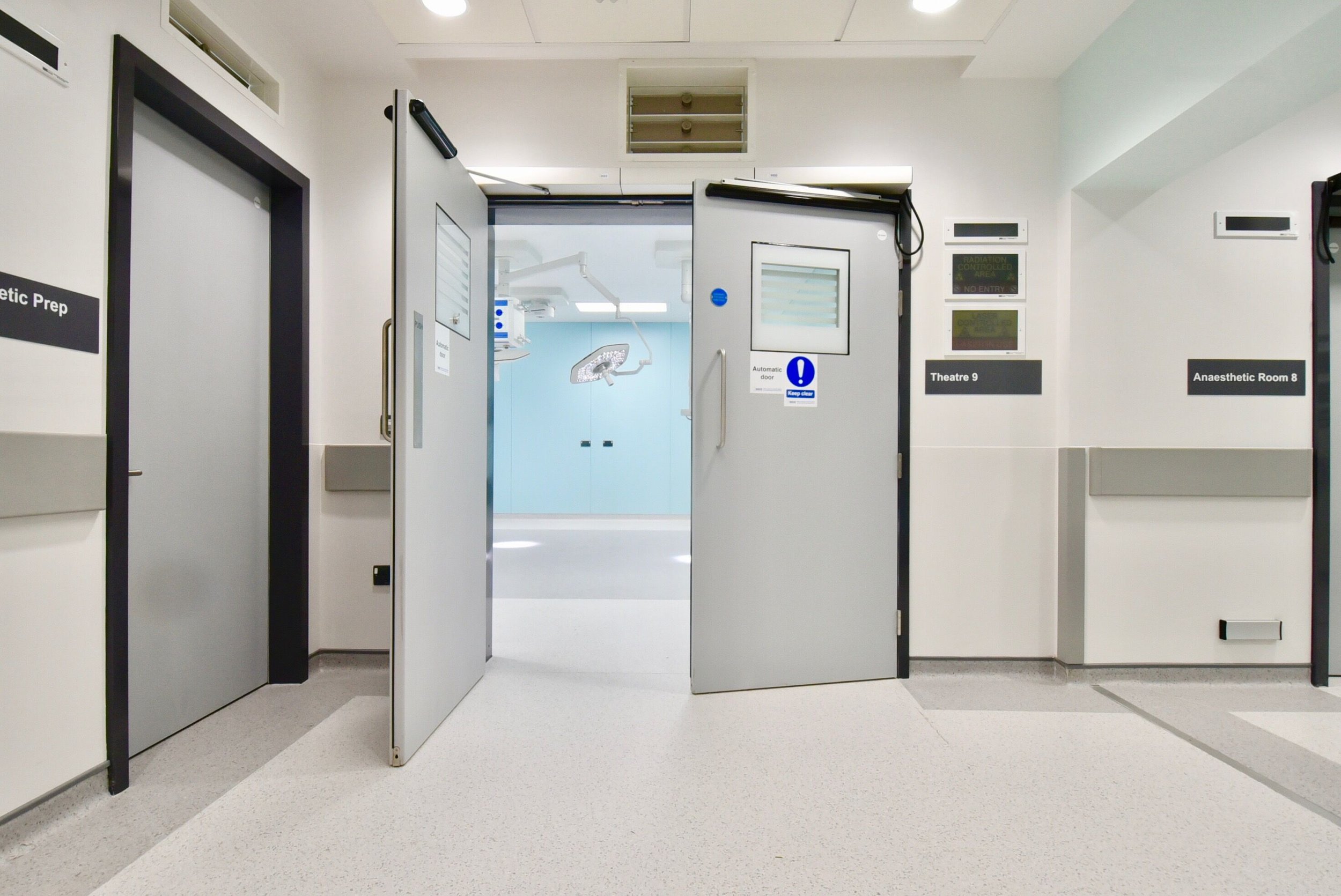

Laser vision panels.jpg

LASER SHIELDING VISION PANELS

LASERBLOC

Designers of laser-controlled areas have all faced the difficult task of how to offer laser protection to windows within theatre doors.

IntaVista Laserbloc vision panels are unique as being the world’s only vision panel capable of applying universal protection against all medical lasers. This supersedes the traditional method of using single-use, laser polymer filters, and eliminates the need to identify laser type at the building design stage.

Suitable for both pulsed and continuous wave, the laser proof blind is housed between two toughened outer glass panels for optimal hygienic design. Once installed, the panels require zero maintenance to guarantee performance.

If needed, each panel can incorporate an integrated microswitch for interlinking with a room’s control board. This can then be configured to prevent the laser device from operating, or trigger an audio/visual alarm to signal if the laser blind has not been closed.

For a copy of the LASERBLOC laser test report (carried out to BS EN 60825-4), please don’t hesitate to get in touch.

Laser proof vision panels.jpg

SPECIFICATION

LASERBLOC SPECIFICATION

- Suitable for all medical lasers*

- Glass: (min.) 6mm toughened safety glass

- Fitting style: Bead Fit / Flush Fit

- Colour finish: Blackout / Solid White

- X-Ray: Code 3 - 8 (1.32 - 3.55mm) lead glass

- Acoustics: (min.) 31dB attenuation

- Handle config.: Single / Double sided

- Handle style: Lever / Thumb turn / Key turn

- Handle finish: Milled / Anti-reflective matte

- Integrated microswitch

Laser windows for doors.jpg

Circular privacy vision panels.jpg

CIRCULAR

PRIVACY VISION PANEL

Circular IntaVista privacy vision panels are available in Bead Fit or Flush Fit styles.

Circular privacy panels are particularly suited to Flush glazed systems, as there’s no need to form circular glazing beads.

Available in non-fire rated, FD30 and FD60 versions, all circular glazed privacy panels can also contain Laserbloc laser shielding, and x-ray shielding lead glass.

Please get in touch for further information.


Vision panels sizes.jpg

SIZING GUIDE

Standard sizes are as follows:

400w x 400h (mm) - INTAVISTA

250w x 800h (mm) - INTAVISTA

200w x 750h (mm) - FLUSHVIEW

200w x 1500h (mm) - FLUSHVIEW

Non-standard sizes are available on request.


TRANSPORT

Unique to Hygeno is the ability to transport our privacy vision panels in a horizontal position, thus enabling our panels to be factory fitted and transported on palletised bearers.

Hygeno contact details.jpg

CONTACT

For further information, please email or call us on:

info@hygeno.com

+44 (0) 1482 647354
